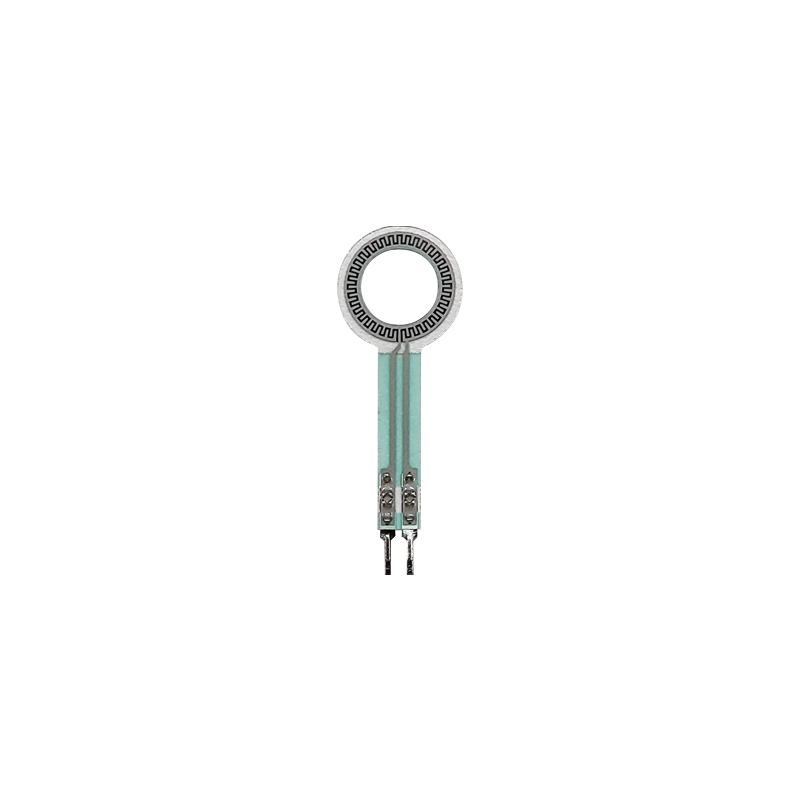

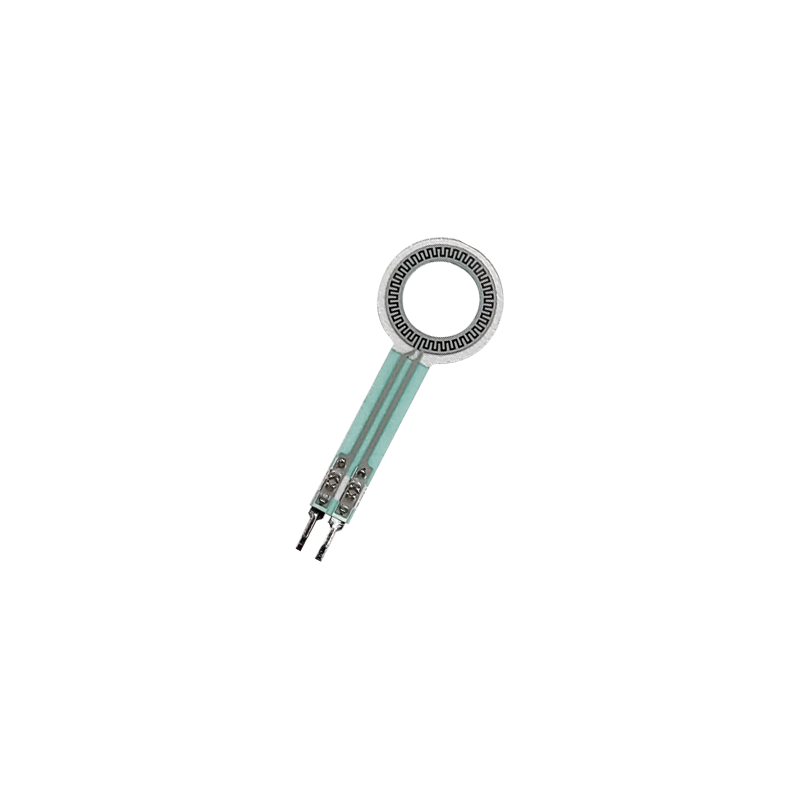

Force Sensing Resistor RP-C15H9 FSR sensor
Force Sensing Resistor RP-C15H9 resistive varistor is a flexible thin film sensor whose resistance value decreases as the pressure on the acting sensing zone increases.
The FSR sensors
use high-tech raw materials
Force Sensing Resistor RP-C15H9 is made of excellent mechanical properties
Polyester film, composed of highly conductive materials and nano-scale pressure-sensitive materials,
The top layer is a flexible film and a pressure-sensitive layer compounded on top, and the bottom layer is soft
film and composite on the top of the conductive circuit. Both through double-sided tape
Bonding and isolation of the sensing area. When the sensing zone is pressurized, it is on the bottom layer
Lines that are disconnected from each other are channeled through the top-level pressure-sensitive layer of the port
The output value of the resistor varies with the pressure.
Features of thin film sensors
- Excellent strength sensing
- The response speed is fast
- Durable life is long
- Long service life
- The circuit principle is simple and easy to apply
- Customizable

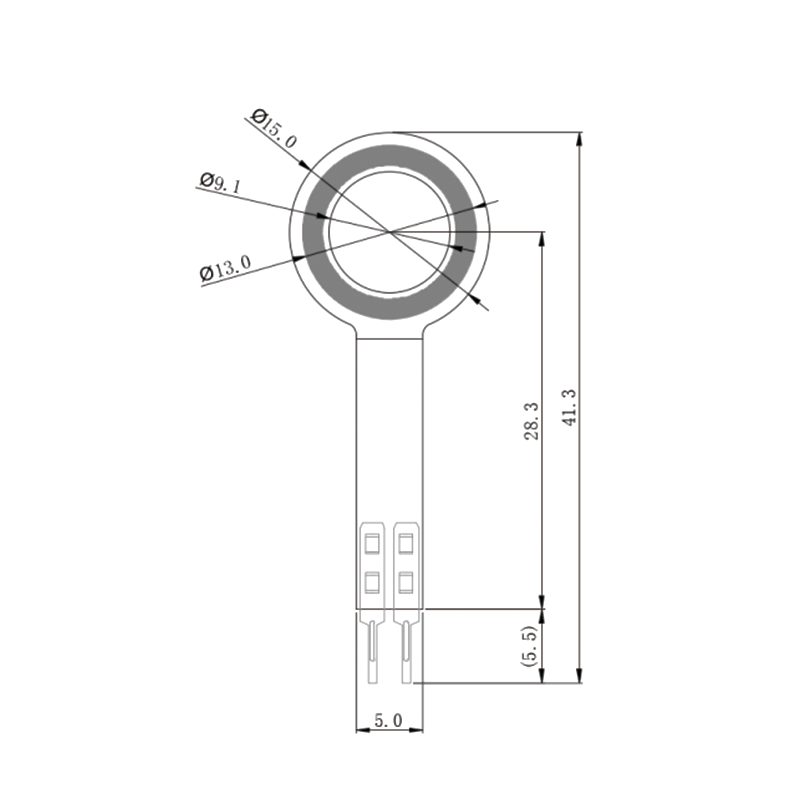

Product Parameter
Main Specification
| Thickness | 0.2 mm |
| Pattern | flaky |
| Trigger force | 20g |
| pressure limit | 20g~5Kg |
| At 20g force | Resistance is <500 KΩ |
| When 5Kg force | Resistance is <500 Ω |
| Pressure mode of action | Contact press |
| Resistor when not triggered | Greater than 20M of the Ω |
| Activation time | Less than 10ms |
| End-use temperature | -20℃~+65℃ |
| Durability | Over 1 million times (Normal flexible pressing) |
| Range of resistance use | 0.5K~500KΩ |
| Response time | <10ms |
| Whether waterproof | No |
| Whether dust | No |
| Electromagnetic interference EMI | Not have |
| Static electricity discharge EDS | Not have |
