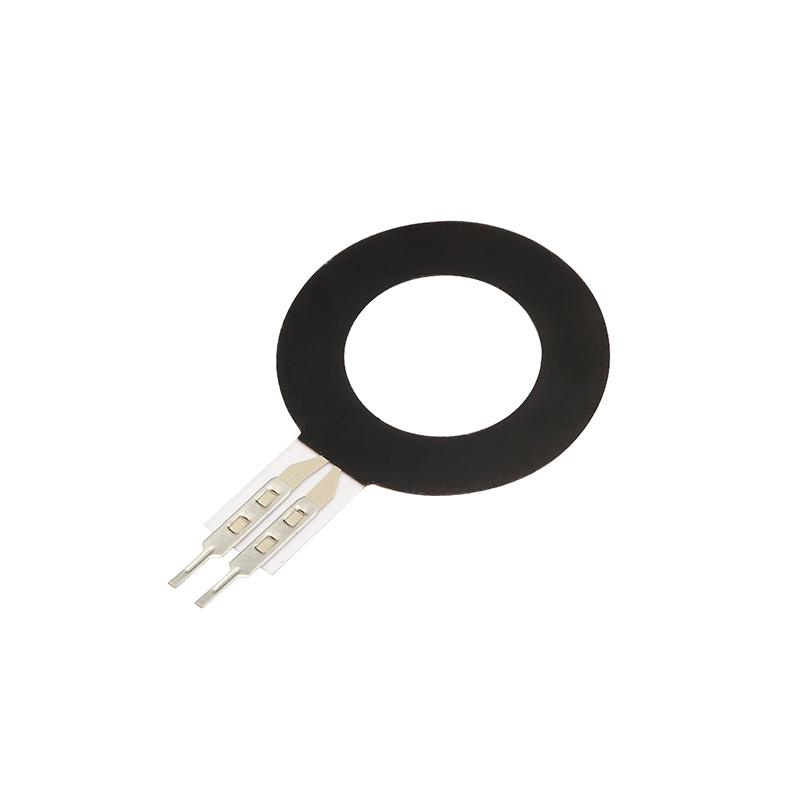

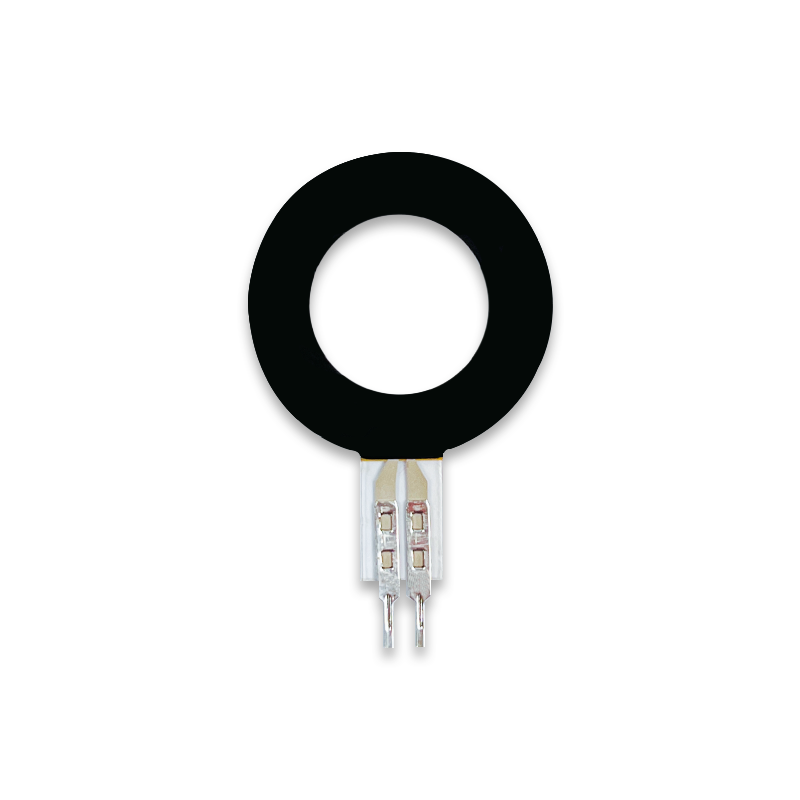

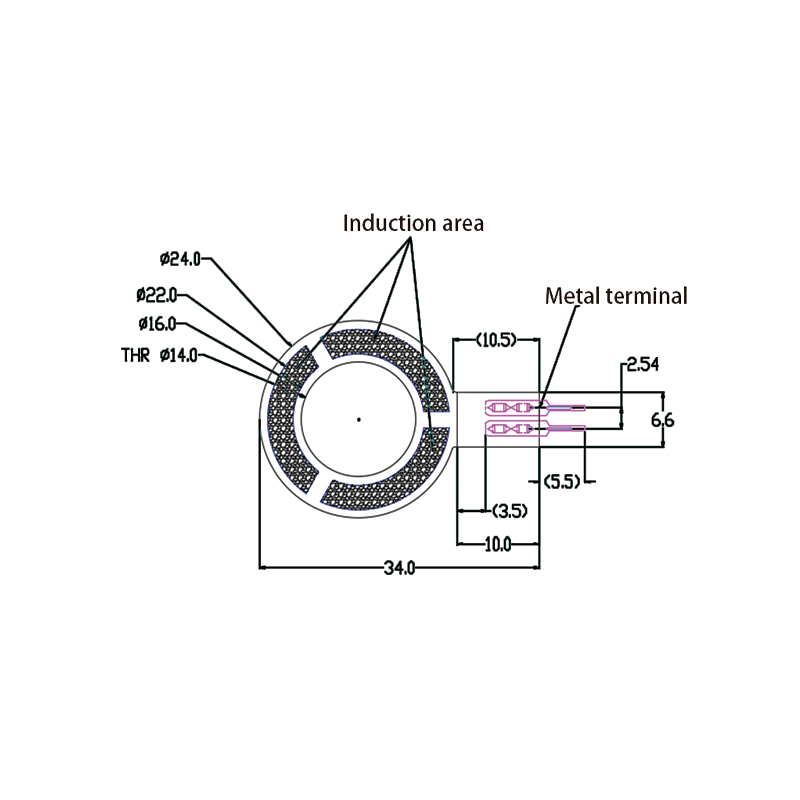

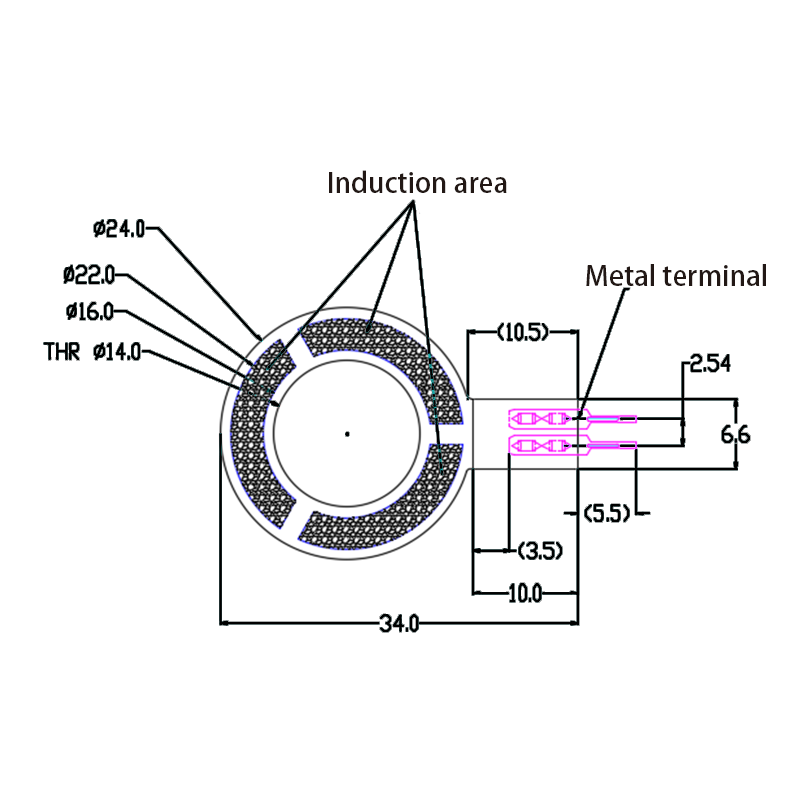

Force Sensing Resistor RP-R24H14 FSR sensor
Force Sensing Resistor RP-R24H14 resistive varistor is a flexible thin film sensor whose resistance value decreases as the pressure on the acting sensing zone increases.
The FSR sensors
use high-tech raw materials
Force Sensing Resistor RP-R24H14 is made of excellent mechanical properties
Polyester film, composed of highly conductive materials and nano-scale pressure-sensitive materials,
The top layer is a flexible film and a pressure-sensitive layer compounded on top, and the bottom layer is soft
film and composite on the top of the conductive circuit. Both through double-sided tape
Bonding and isolation of the sensing area. When the sensing zone is pressurized, it is on the bottom layer
Lines that are disconnected from each other are channeled through the top-level pressure-sensitive layer of the port
The output value of the resistor varies with the pressure.
Features of thin film sensors
- Excellent force sensing
- Response speed
- Long durability
- Long service life
- The circuit principle is simple and convenient to use
- Customizable
Product Parameter
Main Specification
| Thickness | 0.3mm |
| Pattern | Schistose |
| Touch power | 100g |
| Pressure limit | 100g~2000g |
| 50g of energy | Resistance <500kΩ |
| 1000g of energy | Resistance <1kΩ |
| Mode of pressure action | Touch and press |
| Resistance when not triggered | Greater than 20mΩ |
| Activation time | Less than 0.01s |
| End-use temperature | -20℃~+65℃ |
| Durability | More than 1 million times(normal flexible pressing) |
| Resistance range | 1k~100kΩ |
| Response time | <1ms |
| Is it waterproof | Deny |
| Is it dustproof | Deny |
| Electromagnetic interference emi | Not have |
| Static electricity discharge eds | Not have |
