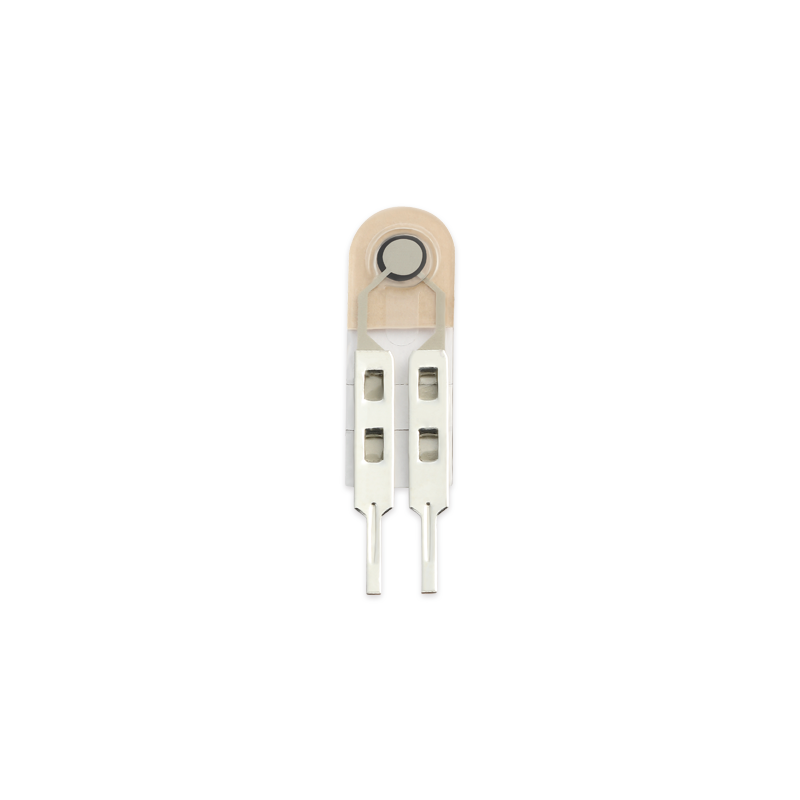

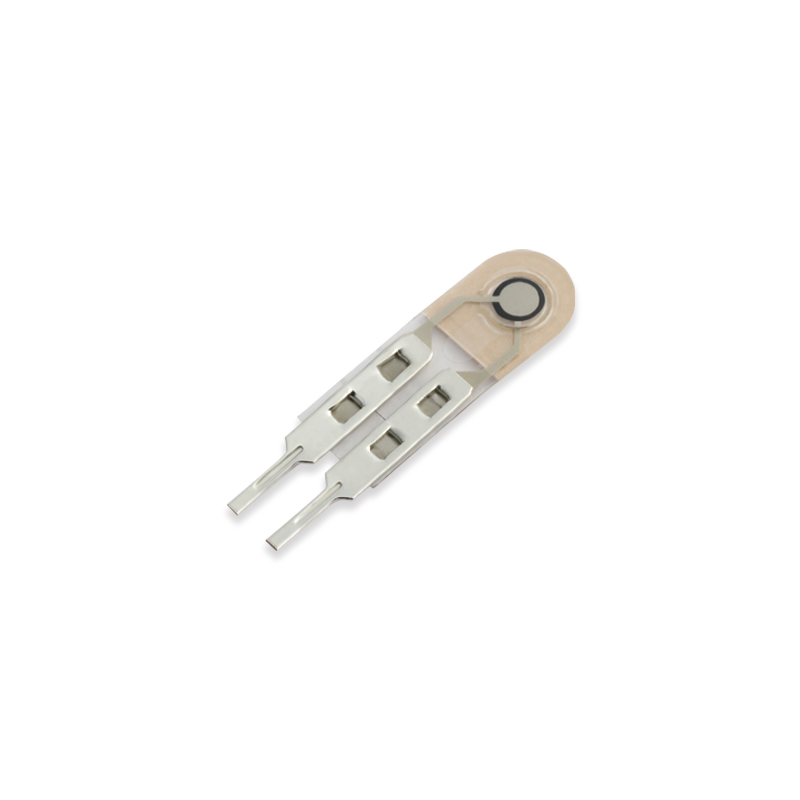

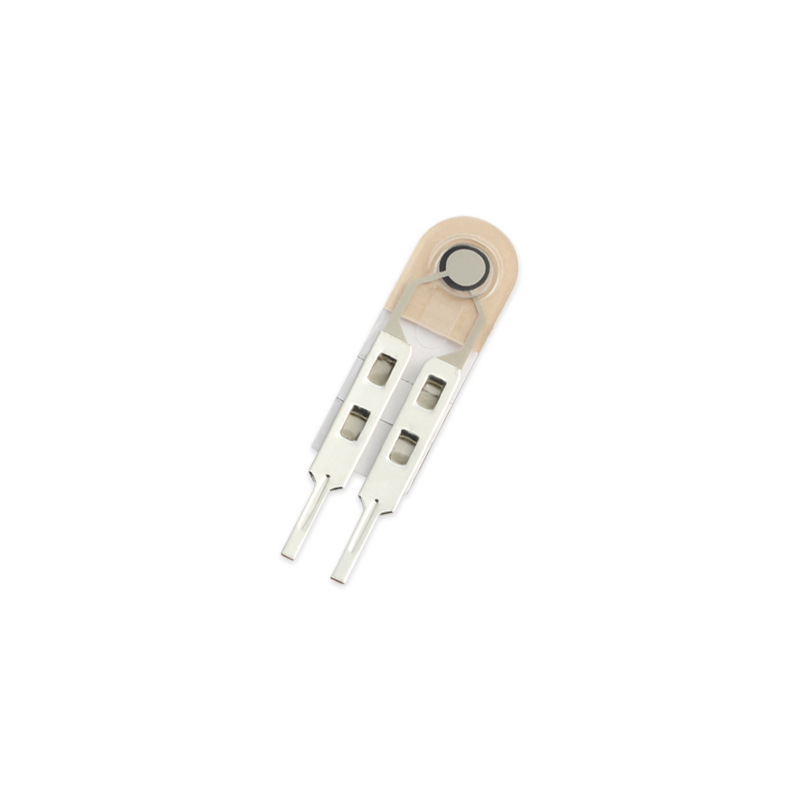

Force Sensing Resistor RP-C5ST-0.1G sensor
Force Sensing Resistor RP-C6-R resistive varistor is a flexible thin film sensor whose resistance value decreases as the pressure on the acting sensing zone increases.
The FSR sensors
use high-tech raw materials
The RP-C5ST-0.1G is a thin film pressure sensorwith extremely low resistance. In the absence of external pressure,
the sensor is inan open state, the resistance is infinite, more than2M ohMs; When the pressure is 0.1-0.5g,
thesensor enters the trigger state, and the resistancevalue is less than 200 KΩ;
When the pressureincreases further, the resistance decreasescorrespondingly.
Features of thin film sensors
- Excellent force sensing
- Fast response time
- Long durability
- Long service life
- The circuit principle is simple and the application is convenient
- Customizable
Product Parameter
Main Specification
| Thickness: | 0.25mm with Rear ADH |
| Shape: | Flexible |
| Actuation force : | 0.1-0.5g |
| Sensitivity range: | 0.5g~500g |
| Trigger time: | <200KΩ |
| Trigger force at 500g force : | <5KΩ |
| Pressure mode of action: | Contact press |
| Resistance when not triggered: | >2MΩ |
| Activation time: | <0.01S |
| Operating temperature: | -40℃~+85℃ |
| Durability: | More than a million times(200g force flexible press) |
| Resistance range: | 1K~200KΩ |
| EMI: | No |
| EDS: | No |
