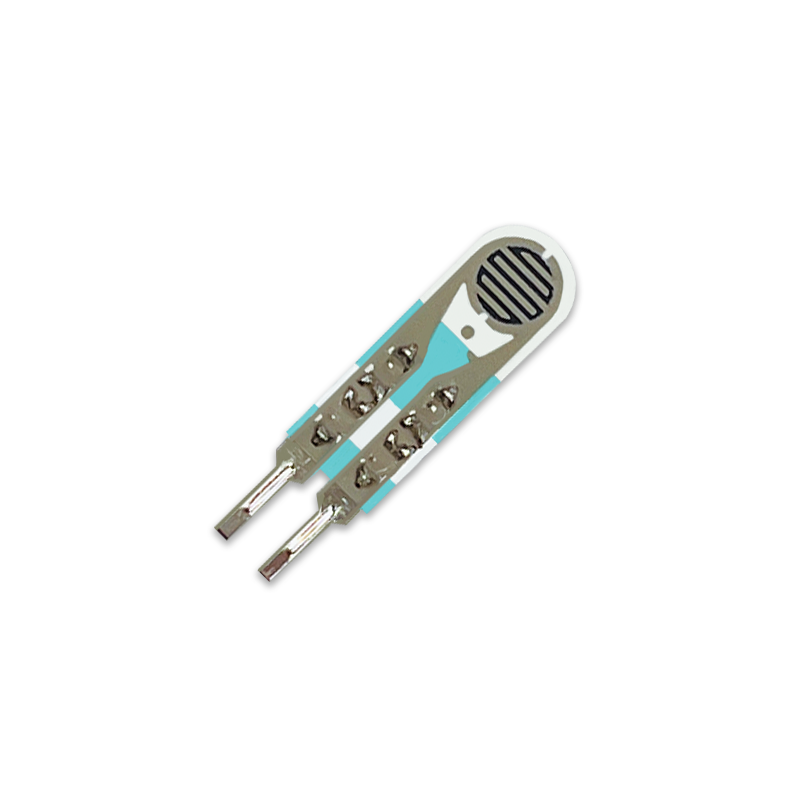

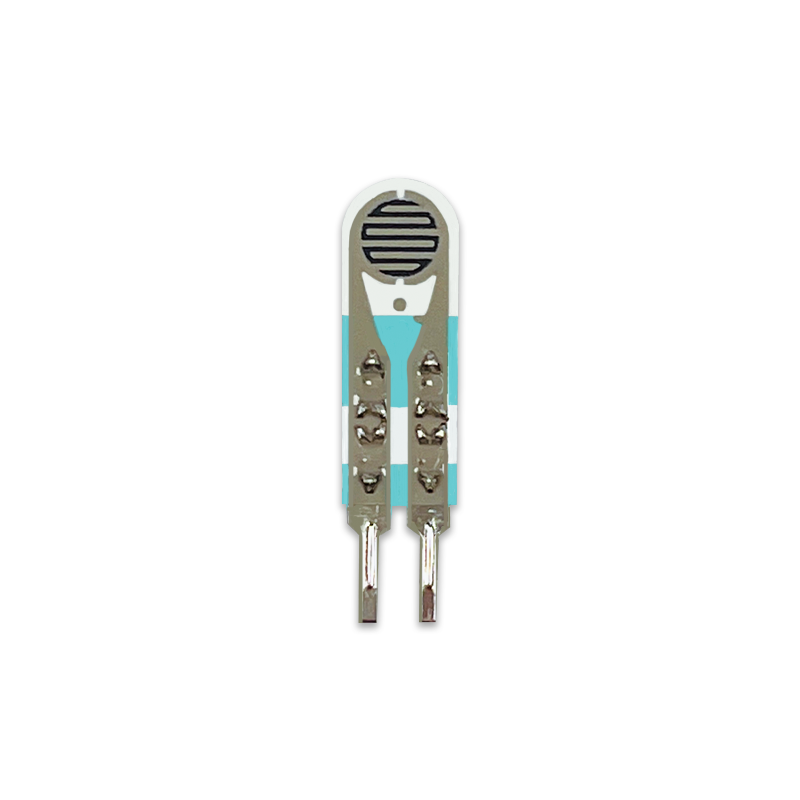

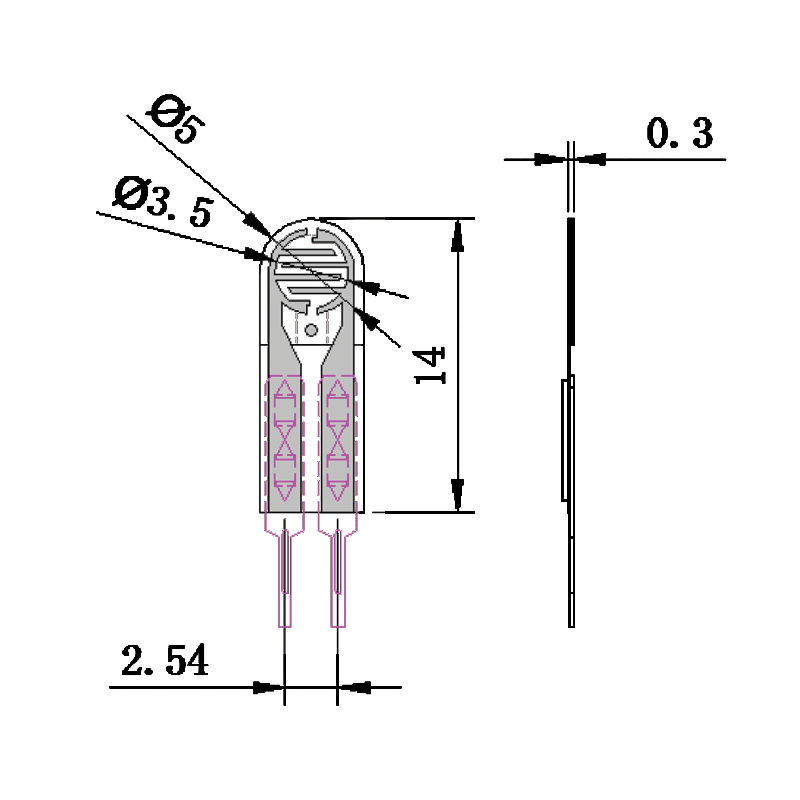

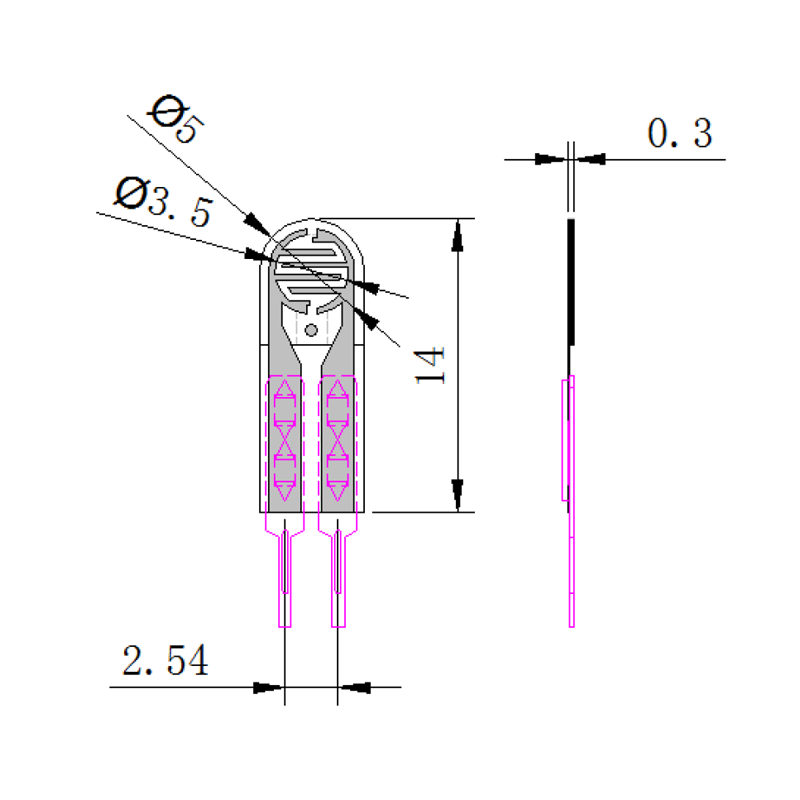

Force Sensing Resistor RP-C5-ST FSR sensor
Force Sensing Resistor RP-C5-ST resistive varistor is a flexible thin film sensor whose resistance value decreases as the pressure on the acting sensing zone increases.
The FSR sensors
use high-tech raw materials
Force Sensing Resistor RP-C5-ST is made of excellent mechanical properties
Polyester film, composed of highly conductive materials and nano-scale pressure-sensitive materials,
The top layer is a flexible film and a pressure-sensitive layer compounded on top, and the bottom layer is soft
film and composite on the top of the conductive circuit. Both through double-sided tape
Bonding and isolation of the sensing area. When the sensing zone is pressurized, it is on the bottom layer
Lines that are disconnected from each other are channeled through the top-level pressure-sensitive layer of the port
The output value of the resistor varies with the pressure.
Features of thin film sensors
- Static / dynamic pressure sensing
- Quick response
- Durable long life
- Customized design
Product Parameter
Main Specification
| Thickness: | 0.30mm with Rear ADH |
| Shape: | Flexible |
| Actuation force : | 30g, Res.<=200KΩ |
| Sensitivity range: | 30g to 1Kg |
| Resolution: | Continuous |
| Non-actuated resistance: | >10M Ω |
| Response time: | <10ms |
| Operating temperature: | -40°C~+85°C |
| Life time : | >1 million |
| Repeatability Same part: | +/-3%, Average R@1000g |
| Repeatability part to part: | +/-10% Average R@1000g |
| Hysteresis: | +10%, (RF+ – RF-)/FR+，1000g |
| EMI: | Generates no EMI |
| EDS: | Not ESD sensitive |
| Drift : | <5%, 1kg load, 24H |
