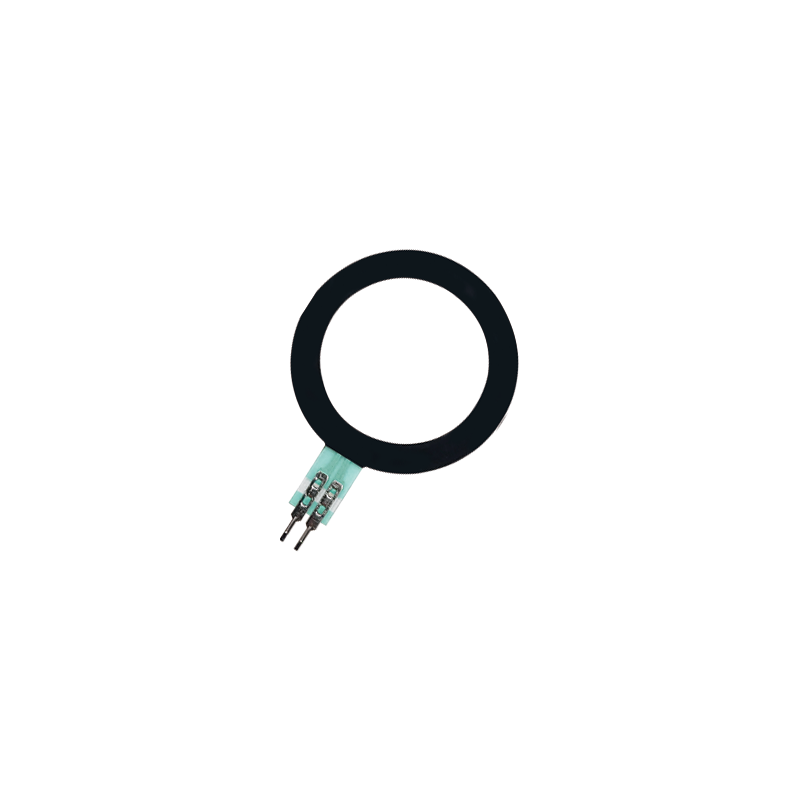

Force Sensing Resistor RP-C34H25 FSR sensor

Force Sensing Resistor RP-C34H25 resistive varistor is a flexible thin film sensor whose resistance value decreases as the pressure on the acting sensing zone increases.

$4.30(Sample price)

1

Piece/Pieces

The FSR sensors
use high-tech raw materials

Force Sensing Resistor RP-C34H25 is made of excellent mechanical properties
Polyester film, composed of highly conductive materials and nano-scale pressure-sensitive materials,
The top layer is a flexible film and a pressure-sensitive layer compounded on top, and the bottom layer is soft
film and composite on the top of the conductive circuit. Both through double-sided tape
Bonding and isolation of the sensing area. When the sensing zone is pressurized, it is on the bottom layer
Lines that are disconnected from each other are channeled through the top-level pressure-sensitive layer of the port
The output value of the resistor varies with the pressure.

Features of thin film sensors

  • Excellent force sensing
  • Fast response speed
  • Long service life
  • The circuit principle is simple and easy to use
  • Customizable

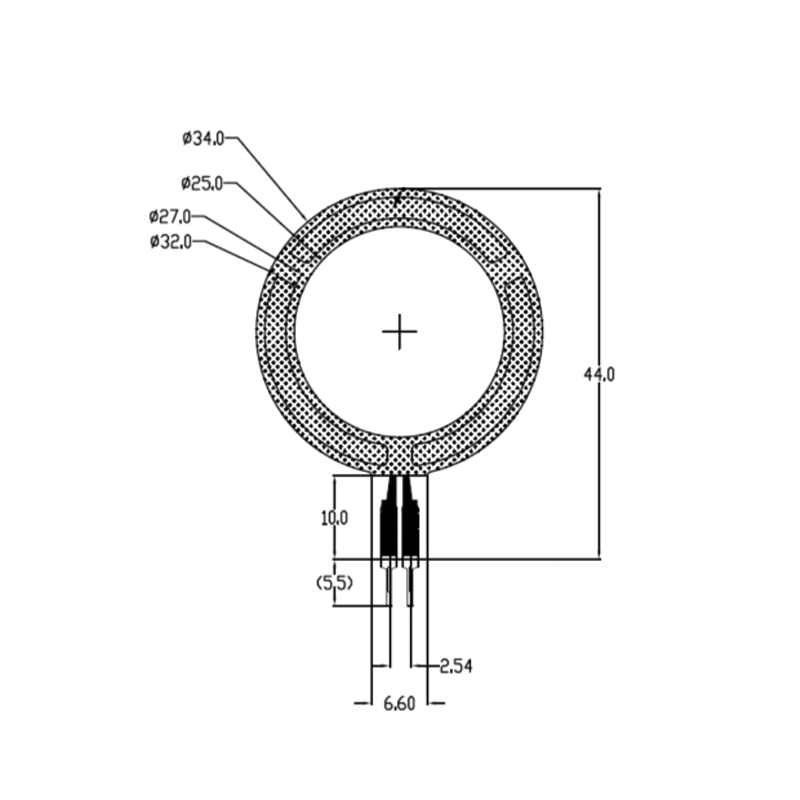

Product Parameter

Thickness 0.3mm
Shape Flaky
Actuation force 1kg
Sensitivity range 1kg~10kg
1kg force time Resistance <500KΩ
10kg force time Resistance <500Ω
Pressure action mode Touch and press
Resistance when not triggered > 20MΩ
Activation time < 10ms
End-use temperature -20℃~+65℃
Durability More than a million times(normal flexible pressing)
Resistance usage range 0.5k~500KΩ
Response time <10ms
Whether it is waterproof

Whether dustproof

EMI

 Deny

Deny

Not have
EDS Not have
