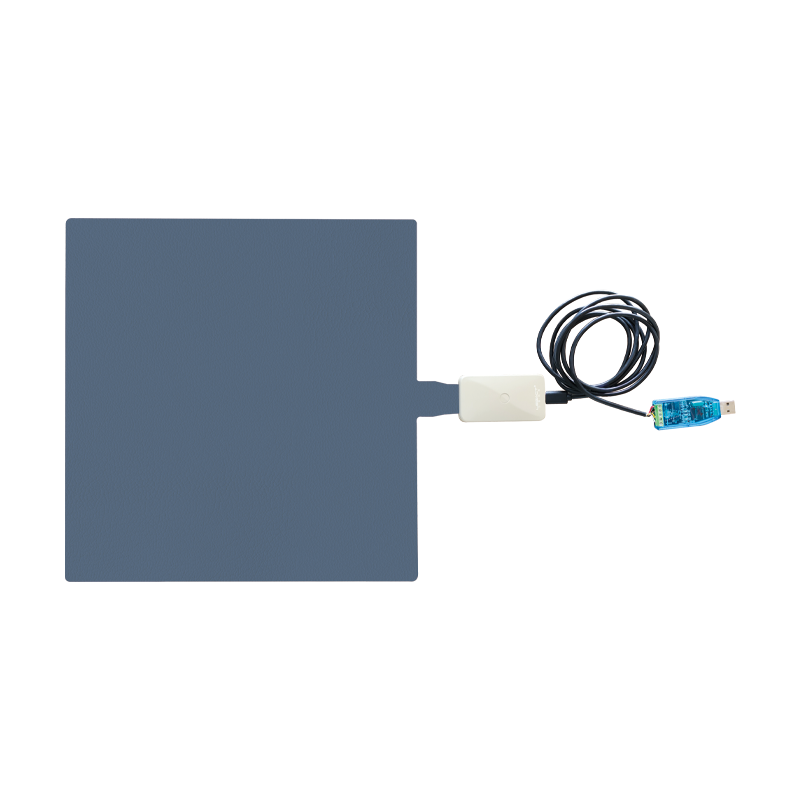

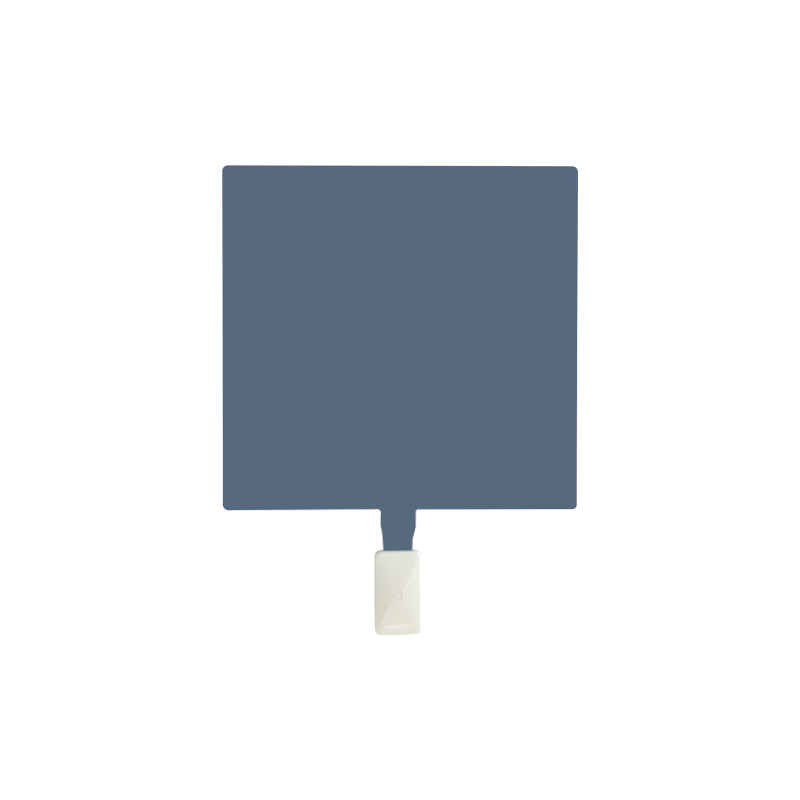

RPPS-400485

The RPPS-400485 pressure distribution sensor is a highly wrinkle-resistant and stretchable multi-point sensor, perfectly suitable for applications in seat cushions and mattresses. It can also be encapsulated for greater strength and durability. It features a 400-point array of sensing pressure sensors, with 20 sensing points in the horizontal direction and 20 in the vertical direction. Each 20x20mm has one sensing point, with a sensing point size of 5mm. The resistance value of each sensing point decreases as the pressure acting on it increases. The interface adopts a 20-pin, 1.0 pitch plug-in interface, in X+Y mode, with 20 pins in the horizontal direction and 20 pins in the vertical direction, with pin spacing of 1.0mm.

Thin-film pressure sensor
Use high-tech raw materials

The flexible film pressure-sensitive sensor is made of mechanically superior polyester film.
It consists of a highly conductive material and a nano-scale layer.
The bottom layer is the flexible film and the conductive layer is laminated on it,
while the top layer is the flexible film and the pressure-sensitive material is laminated on it.
Both layers are adhered together with double-sided adhesive and isolated to separate the sensing areas of the upper and lower layers.
When the sensing area is pressed, the lines in the bottom layer separate from each other and conduct electricity,
and the output resistance of the metal ports changes accordingly with different pressures.

Thin

Timely response

Weather-resistant

Durable on the outside

Operate with gloves

Low power consumption

The characteristics of the array pressure distribution system

Precise sensing

Fast response speed

Long durability and lifespan

Excellent wrinkle resistance

Excellent tensile strength

Customizable design

Thin-film pressure sensor
Use high-tech raw materials

In the field of seat design, comfort has long relied on subjective perception.
Do you find it difficult to quantify “comfort”? Are you unable to precisely locate the “pressure points”?

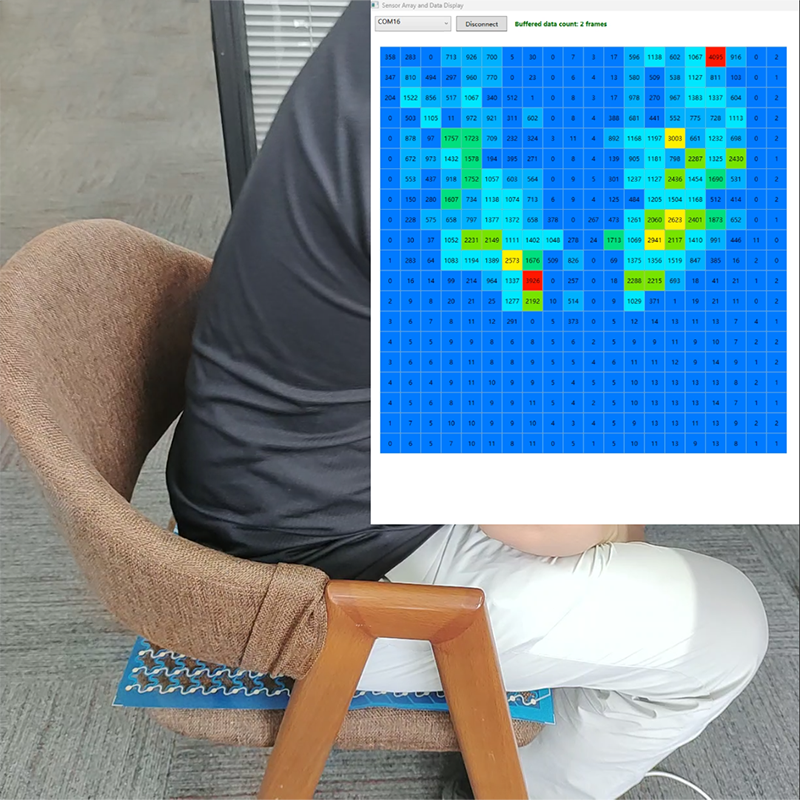

Our flexible pressure distribution system is precisely what enables you to transform “comfort”
from an abstract feeling into objective science.By embedding this sensor, which is only as thick as a film,
into the seat cushion, it can instantly become a “pressure vision system”.With 400 densely spaced sensing points,
it can clearly outline the pressure map of the occupant’s buttocks and back,
and accurately identify areas with excessive pressure (such as the ischial tuberosity) and areas with insufficient support.

Product Parameter

Main Specification

Type：	RPPS-400485
Style：	Flake
Trigger force：	10g
Resistors after triggering：	<500KΩ
Pressure range：	10g~3000g and above, single sensing point
Resistor Application Range：	0.1KΩ~200KΩ
Pressure action mode：	Press
Resistance when not triggered：	>1MΩ
Operating temperature:	-20℃~+65℃
Repeatability：	+/-5%@1Kg,single
Drift：	-10%，24H@1Kg
Hysteresis：	10%，24H@1Kg
EMI：	Not
EDS：	Not
Programming debugging interface：	SWD burning
Data communication interface：	RS-485 communication
Acquisition module size：	69.550.81.6(mm)
Supply voltage：	5V
Output interface (acquisition module)：	Type-C
