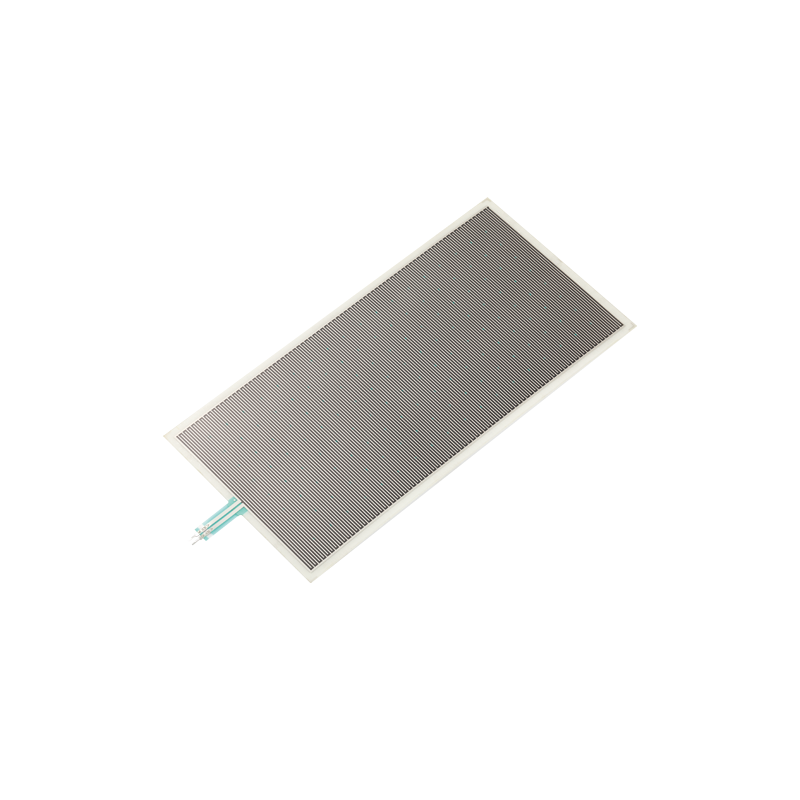

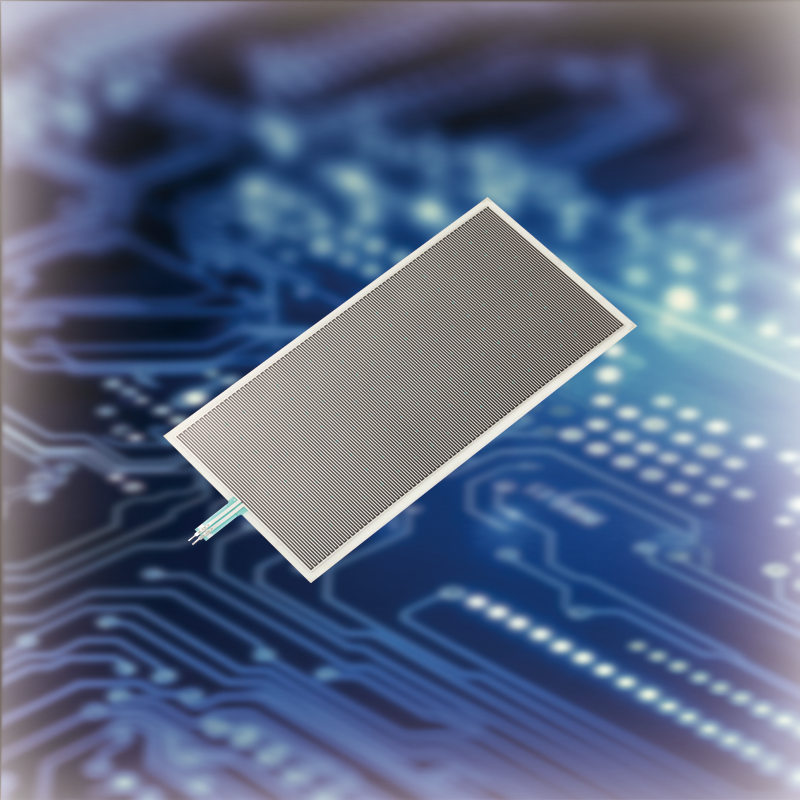

Force Sensing Resistor RP-S100L200-SW FSR sensor

Force Sensing Resistor RP-S100L200-SW resistive varistor is a flexible thin film sensor whose resistance value decreases as the pressure on the acting sensing zone increases.

$17.0(Sample price)

1

Piece/Pieces

The FSR sensors
use high-tech raw materials

Force Sensing Resistor RP-S100L200-SW is made of excellent mechanical properties
Polyester film, composed of highly conductive materials and nano-scale pressure-sensitive materials,
The top layer is a flexible film and a pressure-sensitive layer compounded on top, and the bottom layer is soft
film and composite on the top of the conductive circuit. Both through double-sided tape
Bonding and isolation of the sensing area. When the sensing zone is pressurized, it is on the bottom layer
Lines that are disconnected from each other are channeled through the top-level pressure-sensitive layer of the port
The output value of the resistor varies with the pressure.

Features of thin film sensors

  • Excellent velocity sensitivity
  • Fast response
  • Durability and long life
  • Long service life
  • The circuit principle is simple and easy to apply
  • Customizable

Product Parameter

Thickness 0.50mm
Shape Flaky
Triggering force 10g
Pressure range 10g~1Kg
When triggering force Resistance<500KΩ
1Kg when finger force The resistance is approx 1 KΩ
Pressure action mode Contact compression
Resistance when not triggered >2M Ω
Activation time <0.01S
Operating temperature -20℃~+65℃
Durability More than 1 million times(1Kg force flexible pressing)
Resistor usage range 0.1K~500KΩ
Response time <1ms
Is it waterproof No
Is it dustproof No
EMI No
EDS No
