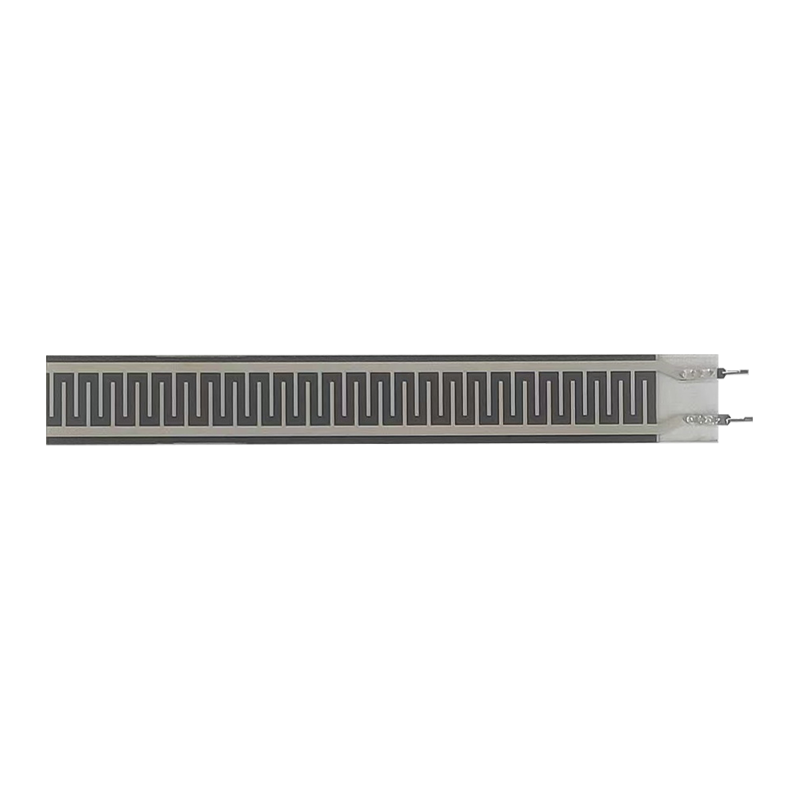

Force Sensing Resistor RP-L FSR sensor

Force Sensing Resistor RP-L resistive varistor is a flexible thin film sensor whose resistance value decreases as the pressure on the acting sensing zone increases.

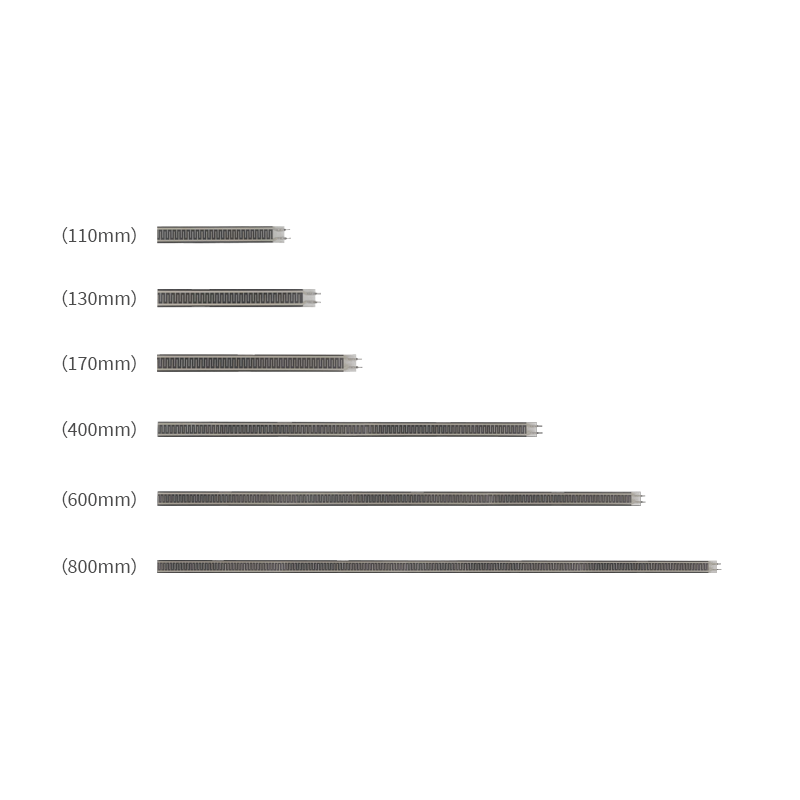

$1.28(Price for 80mm length)

1

Piece/Pieces

The FSR sensors
use high-tech raw materials

Force Sensing Resistor RP-L is made of excellent mechanical properties
Polyester film, composed of highly conductive materials and nano-scale pressure-sensitive materials,
The top layer is a flexible film and a pressure-sensitive layer compounded on top, and the bottom layer is soft
film and composite on the top of the conductive circuit. Both through double-sided tape
Bonding and isolation of the sensing area. When the sensing zone is pressurized, it is on the bottom layer
Lines that are disconnected from each other are channeled through the top-level pressure-sensitive layer of the port
The output value of the resistor varies with the pressure.

Features of thin film sensors

  • Static / dynamic pressure sensing
  • Quick response
  • Durable long life
  • Customized design

Product Parameter

Thickness: 0.35mm
Shape: Flexible
Actuation force: 20g, Res.<=200KΩ
Sensitivity range: 20g to 10Kg
Mode of pressure application: Static or dynamic (with a frequency within 10Hz)
Non-actuated resistance: >1M Ω
Activation time: <0.01S
Operating temperature: -40℃~+85℃
Durability: More than 1 million times
Uniformity: The resistance value of a single product is within +/- 3%. For the same batch of products, it is within +/- 10% (under the same testing conditions).
Retardation: +10% ,  (RF+ – RF-)/FR+ , 1000g
Response time: <10ms
EMI: Don’t produce
EDS: Not ESD sensitive
Drift: <5%, 2.5kg load, 24H
