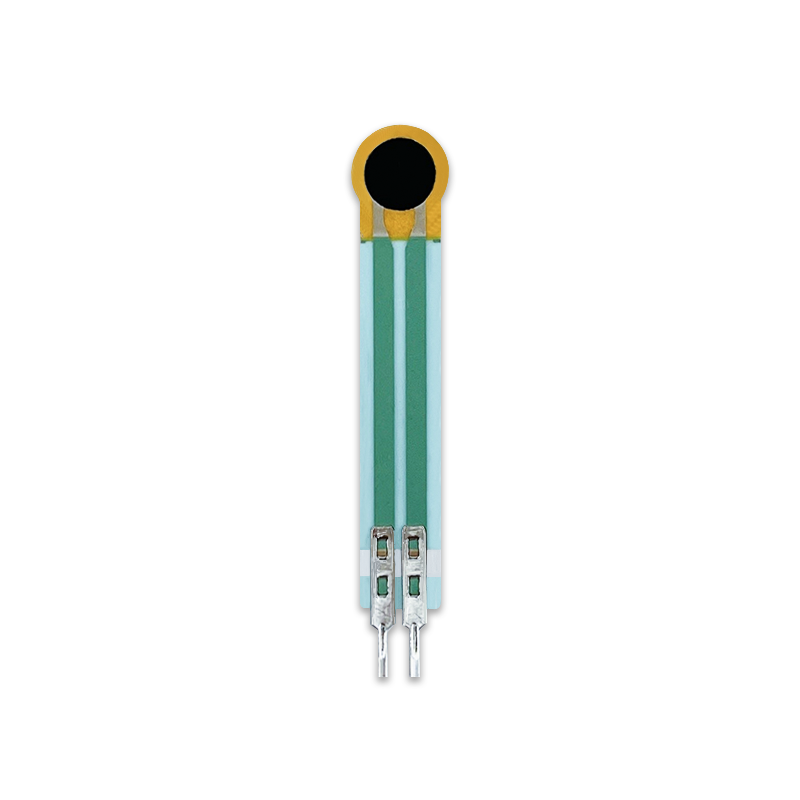

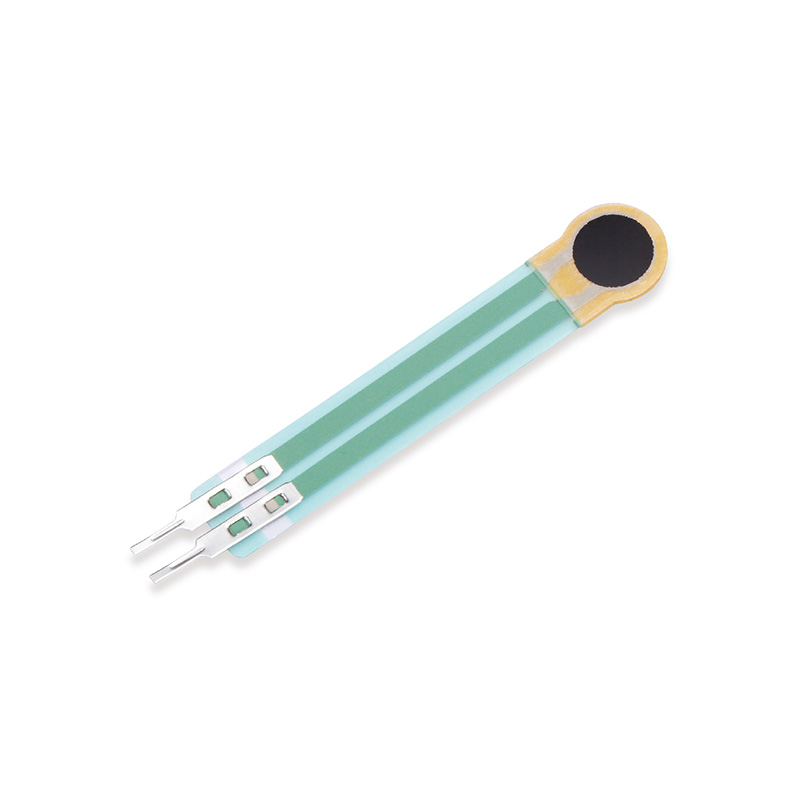

Force Sensing Resistor RP-C7.6LT-LF2 sensor

Force Sensing Resistor RP-C7.6LT-LF2 resistive varistor is a flexible thin film sensor whose resistance value decreases as the pressure on the acting sensing zone increases.

$2.00(Sample price)

1

Piece/Pieces

The FSR sensors
use high-tech raw materials

Force Sensing Resistor RP-C7.6LT-LF2 is made of excellent mechanical properties
Polyester film, composed of highly conductive materials and nano-scale pressure-sensitive materials,
The top layer is a flexible film and a pressure-sensitive layer compounded on top, and the bottom layer is soft
film and composite on the top of the conductive circuit. Both through double-sided tape
Bonding and isolation of the sensing area. When the sensing zone is pressurized, it is on the bottom layer
Lines that are disconnected from each other are channeled through the top-level pressure-sensitive layer of the port
The output value of the resistor varies with the pressure.

Features of thin film sensors

  • Static / dynamic pressure sensing
  • Quick response
  • Durable long life
  • Customized design

Product Parameter

Thickness: 0.2mm with Rear ADH
Shape: Flexible
Actuation force : 2g,Res.<=500KΩ
Sensitivity range: 2g to 1500g
Resolution: Continuous
Non-actuated resistance: > 10MΩ
Response time: < 10us
Operating temperature: -20℃~+65℃
Life time : >1 million
Repeatability Same part: +/-3%, Average R@1000g
Repeatability part to part: +/-10% Average R@1000g
Hysteresis: +10% , (RF+ – RF-)/FR+ , 1000g
EMI: Generates no EMI
EDS: Not ESD sensitive
Drift : <5%, 1kg load, 24H
