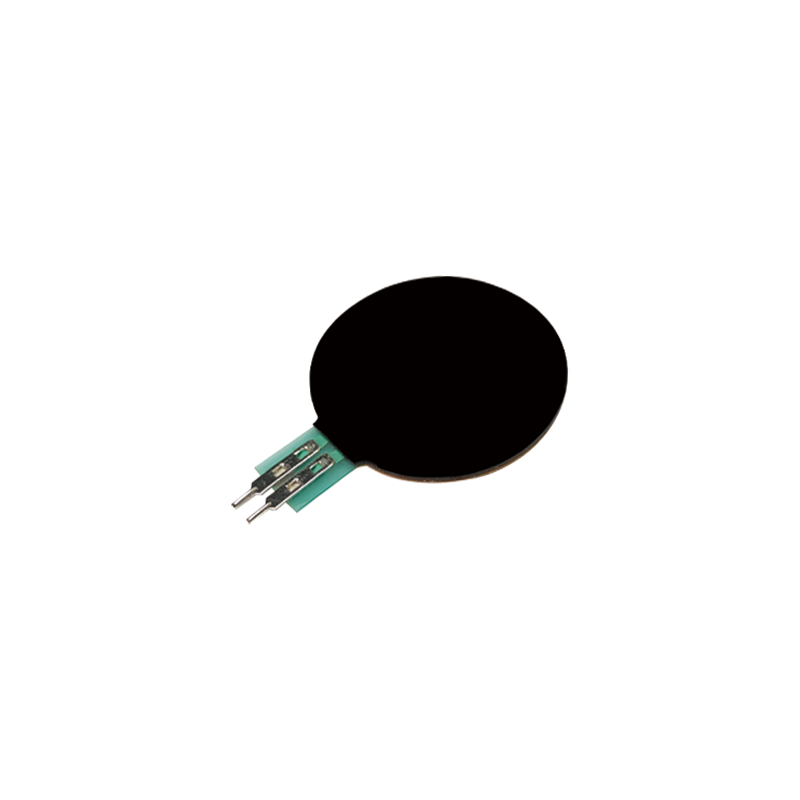

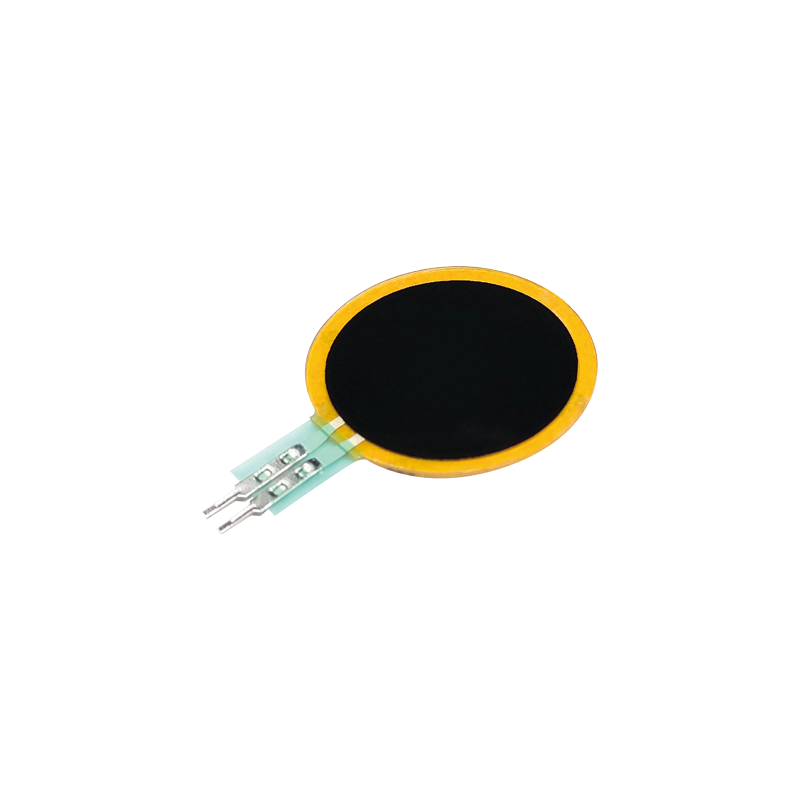

Force Sensing Resistor RP-C30ST-K100 FSR sensor

Force Sensing Resistor RP-C30ST-K100 resistive varistor is a flexible thin film sensor whose resistance value decreases as the pressure on the acting sensing zone increases.

$3.37(Sample price)

1

Piece/Pieces

The FSR sensors
use high-tech raw materials

Force Sensing Resistor RP-C30ST-K100 is made of excellent mechanical properties
Polyester film, composed of highly conductive materials and nano-scale pressure-sensitive materials,
The top layer is a flexible film and a pressure-sensitive layer compounded on top, and the bottom layer is soft
film and composite on the top of the conductive circuit. Both through double-sided tape
Bonding and isolation of the sensing area. When the sensing zone is pressurized, it is on the bottom layer
Lines that are disconnected from each other are channeled through the top-level pressure-sensitive layer of the port
The output value of the resistor varies with the pressure.

Features of thin film sensors

  • Excellent strength sensing
  • The response speed is fast
  • Long durability and long life
  • Long service life
  • The circuit principle is simple and easy to apply
  • Customizable

Product Parameter

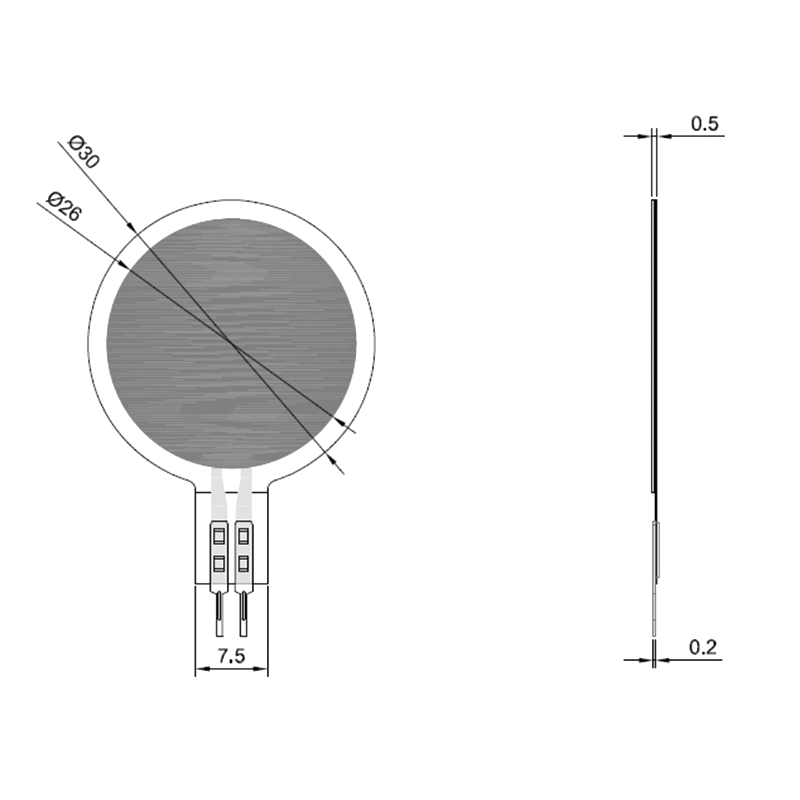

Thickness: 0.5mm
Shape: Flexible
Trigger force: 100g
Pressure limit: 100g~100kg
When triggering force: Resistance is <200 KΩ
At 100 kg of the force: Resistance was <0.3 KΩ
Pressure mode of action: Contact press
Resistor when not triggered: >20M Ω
Activation time: <0.01s
End-use temperature: -20℃~+65℃
Durability: Over 1 million times(10 kg force flexible press)
Range of resistance use: 200Ω~200KΩ
Response time: <1ms
Whether waterproof: Deny
Whether dust: Deny
EMI: Generates no EMI
EDS: Not ESD sensitive
