POT-W10L333

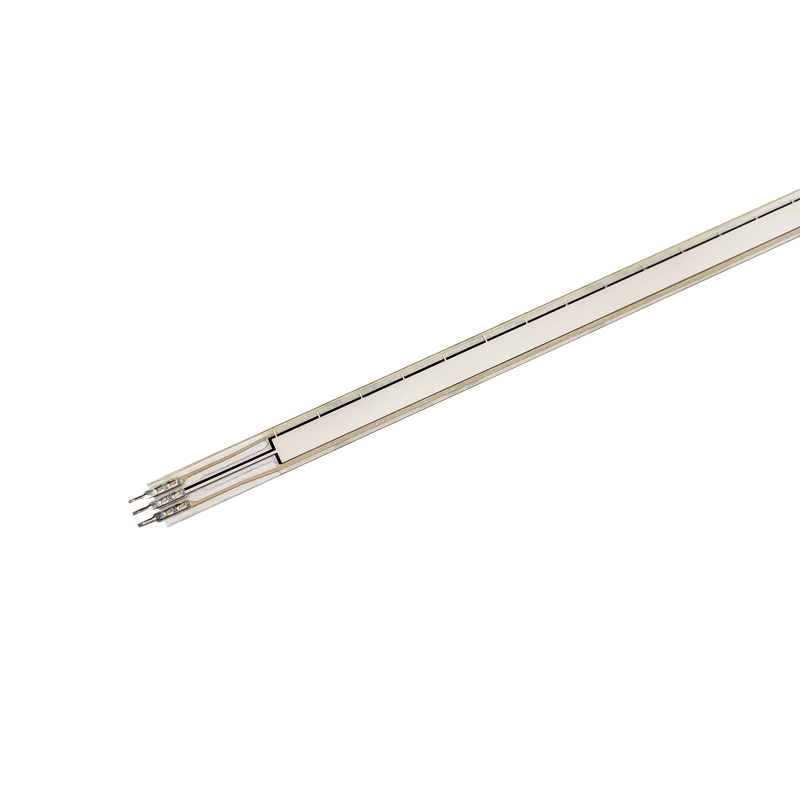

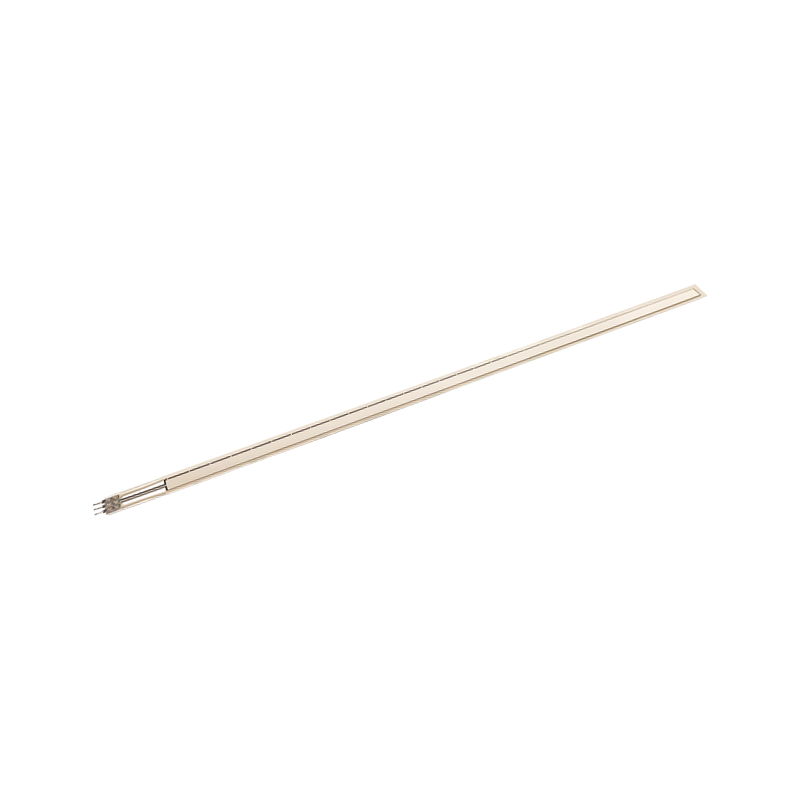

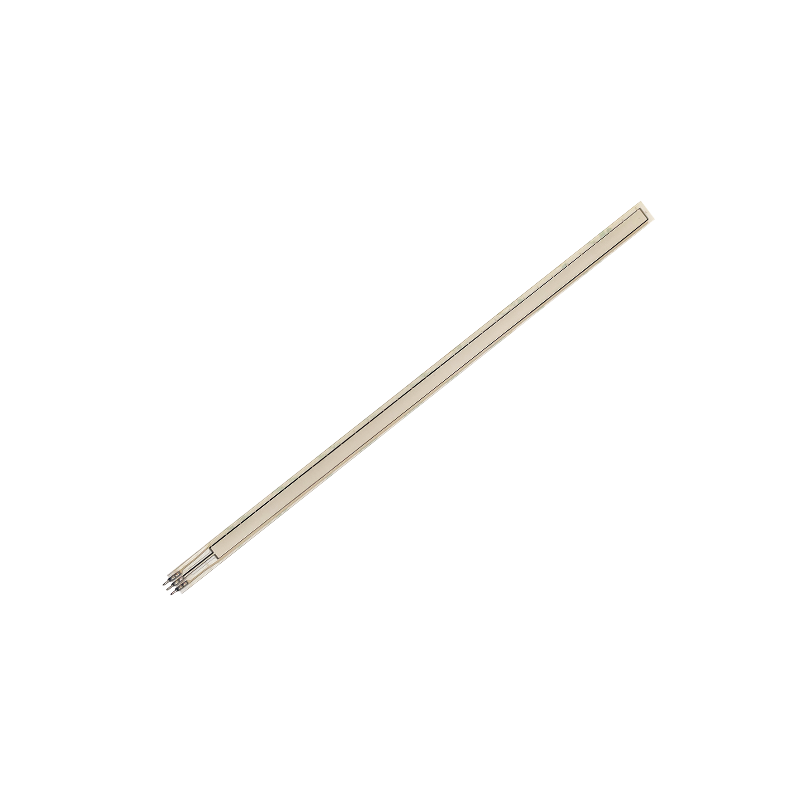

POT-W10L333 is a resistive long-strip type film position sensor.
The PIN3 of the sensor is grounded, PIN1 is connected to the power voltage V+, and PIN2 is the output voltage of the sensor. When no voltage is applied to the sensing area, PIN2 is in an open state and the output voltage V1 is 0; when there is pressure (20g – 50g), the sensor is triggered, and V1 outputs a voltage signal. As the pressure application position moves from the right end of the sensor to the left end, V1 increases, and the change range is from 0V+ to V+ in a linear manner. The voltage value of V1 is determined by the pressure application position; after the pressure is removed, the sensor returns to the disconnected state, and the voltage of V1 is 0.

Thin-film pressure sensors
use high-tech raw materials

这种薄膜薄膜压敏传感器由机械性能优异的薄膜制成，该薄膜
由高导电材料和纳米级压敏材料构成。
薄膜本身具有薄膜，并覆有导电层，
因此上下两面均薄膜有压敏材料。
薄膜采用双面胶互连，将上下两层用于传感的区域隔离开来。
当压感区域受到压力时，薄膜隔离电路导通，
金属端口的输出电阻随压力的变化而相应改变。

Thin

Timely response

Weather-resistant

Durable on the outside

Operate with gloves

Low power consumption

Array Sensor features

Precise induction
Fast response speed
Long durability
Product shape can be customized according to customer requirements
Product pressure point distribution can be customized according to customer requirements
Product pressure sensing range can be customized according to customer requirements

Product Parameter

Main Specification

Thickness:	0.40mm
Shape :	flexible
Actuation force:	20g-50g
Sensitivity range:	20g to 200g
Recommended probe:	Arc-shaped spring clip / D3 plastic / rubber ball head
Conductive contact resistance:	Less than 10Ω
Pressure application method:	< sheet spring / spring / weight block
Resistance when not triggered:	Infinity (V1-V0, V1-V+)
Activation time:	Less than 0.01 seconds
Operating temperature:	-20℃ to +65℃
Initial resistance:	30K, customizable
EMI:	No
EDS:	No
RoHS	Yes
