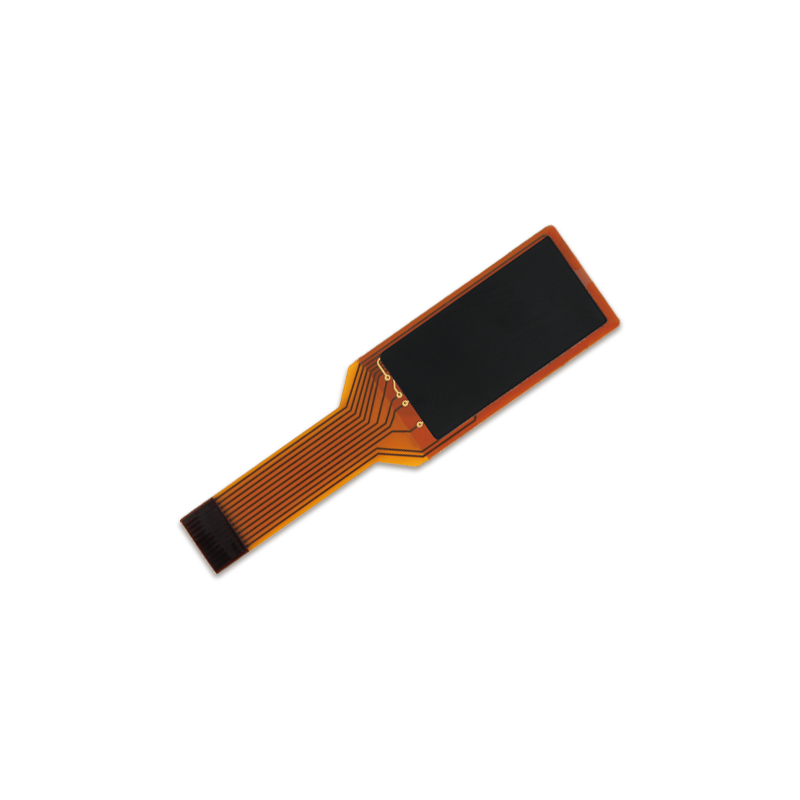

FS-ARR-4X8-ROT pressure distribution sensor is an array pressure sensor with 32 sensing points, 8 horizontally and 4 vertically, one sensing point every 2.5X2.5mm, and a gap of 0.7mm between sensing points. The resistance value of each sensing point decreases as the pressure acting on it increases. The interface adopts X+Y mode, with a total of 12PIN and PITCH 0.5mm.

Thin-film pressure sensors
use high-tech raw materials

Array sensor FS-ARR-4×8-ROT is made of excellent mechanical properties
Polyester film, composed of highly conductive materials and nano-scale pressure-sensitive materials,
The top layer is a flexible film and a pressure-sensitive layer compounded on top, and the bottom layer is soft
Sexual film and composite on the top of the conductive circuit. Both through double-sided tape
Bonding and isolation of the sensing area. When the sensing zone is pressurized, it is on the bottom layer
Lines that are disconnected from each other are channeled through the top-level pressure-sensitive layer of the port
The output value of the resistor varies with the pressure.

Thin

Timely response

Weather-resistant

Durable on the outside

Operate with gloves

Low power consumption

Array Sensor features

Precise induction
Fast response speed
Long durability
Product shape can be customized according to customer requirements
Product pressure point distribution can be customized according to customer requirements
Product pressure sensing range can be customized according to customer requirements

Product Parameter

Main Specification

Thickness:	0.3mm
Shape :	flexible
Actuation force:	20g
Sensitivity range:	20g to 5Kg
Pressure mode of action:	Press
Resistance when not triggered:	>20M Ω
Operating temperature :	-20℃~+65℃
Repeatability:	+/-5%@1Kg, single
Drifting:	-10%，24H@1Kg
Delaying:	10%，24H@1Kg
Durability:	More than a million times, one kilogram of force
Response time:	<10us
EMI:	No
EDS:	No
RoHS	Yes
