FS-ARR-20×20

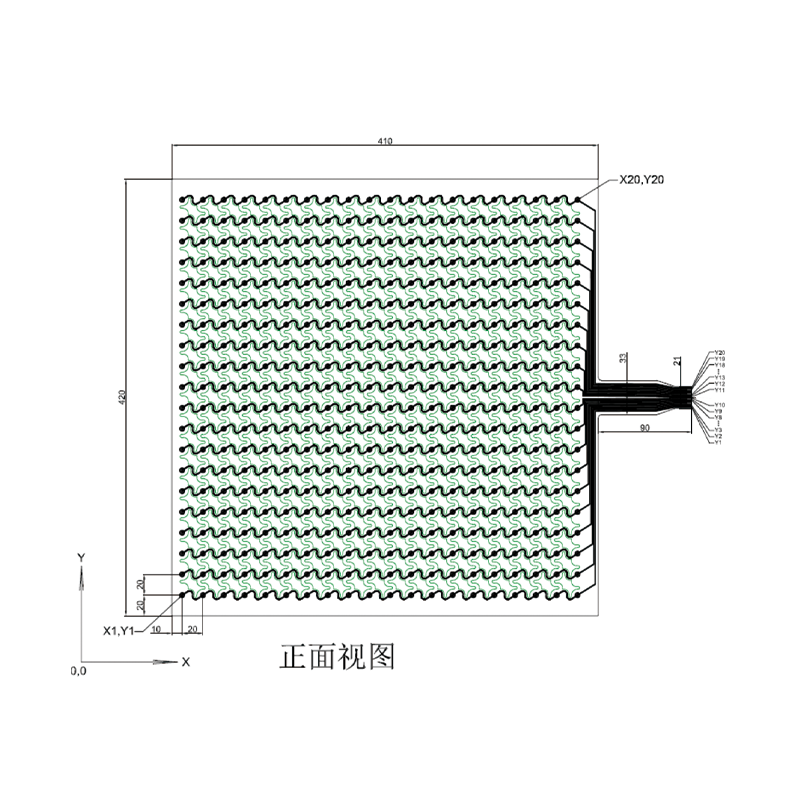

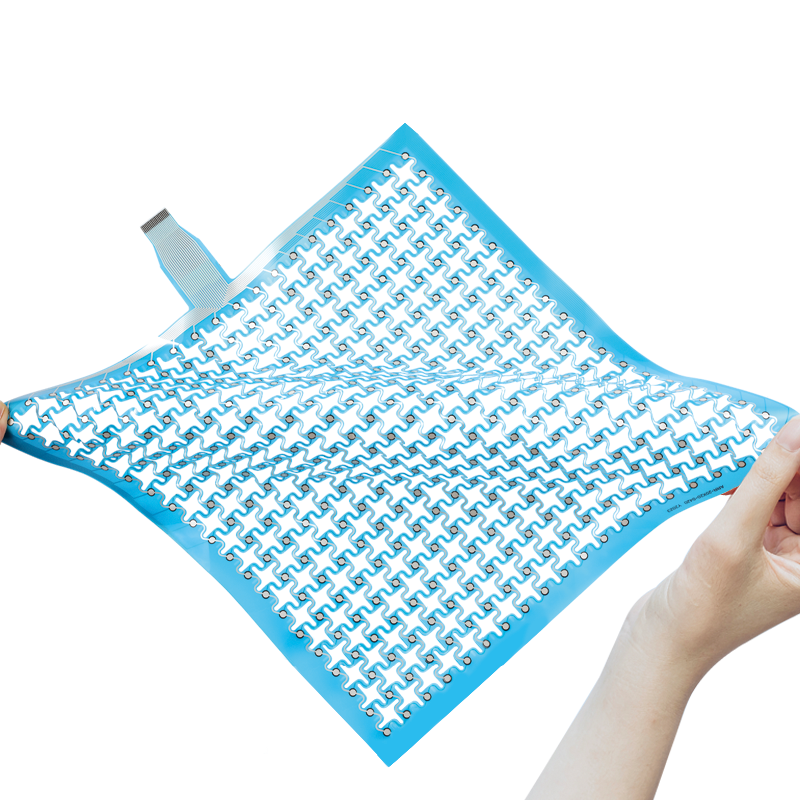

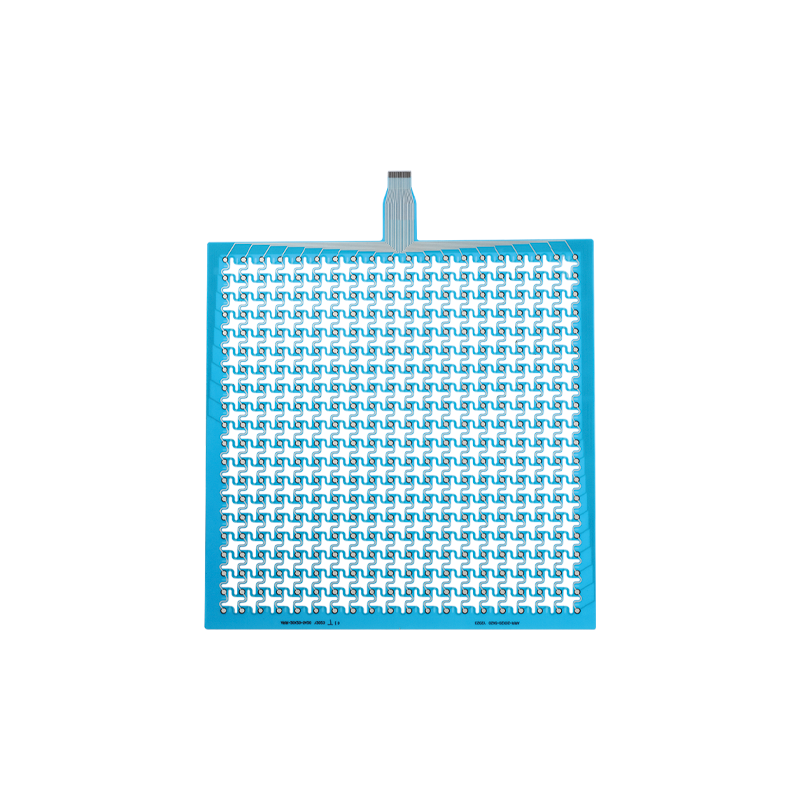

The FS-ARR-20X20 pressure distribution sensor is a highly wrinkle-resistant, stretchable multi-point sensor, perfectly suitable for applications in seat cushions and mattresses. It features a 400-point array of sensing pressure sensors, with 20 sensing points in the horizontal direction and 20 in the vertical direction. Each 20x20mm has one sensing point, with a sensing point size of 5mm. The resistance value of each sensing point decreases as the pressure acting on it increases. The interface adopts a 20-pin, 1.0 pitch plug-in interface, in X+Y mode, with 20 pins in the horizontal direction and 20 pins in the vertical direction, with pin spacing of 1.0mm.

Thin-film pressure sensors
use high-tech raw materials

The flexible film pressure-sensitive sensor is made of mechanically superior polyester film.
It consists of a highly conductive material and a nano-scale layer.
The bottom layer is the flexible film and the conductive layer is laminated on it,
while the top layer is the flexible film and the pressure-sensitive material is laminated on it.
Both layers are adhered together using double-sided adhesive and the sensing areas of the upper ,
and lower layers are isolated from each other. When the sensing area is pressed,
the separate lines in the bottom layer are connected,
and the output resistance of the metal ports changes accordingly with different pressures.

Thin

Timely response

Weather-resistant

Durable on the outside

Operate with gloves

Low power consumption

Array Sensor features

Precise sensing
Fast response speed
Long durability and lifespan
Excellent wrinkle resistance
Excellent tensile strength
Customizable design

Product Parameter

Main Specification

Thickness	0.2mm
Shape	Sheet
Actuation force	20g,
Sensitivity range	20g-more than 3Kg
Resolution	continuous
Non-actuated resistance	>1M Ω
Response time	<10us
Operating temperature	-20℃~+65℃
Life time	>1 million with 1kg force
Repeatability	+/-5% @ 500g.Single
Hysteresis	+10%，24H@500g
EMI	Generates no EMI
EDS	Not ESD sensitive
